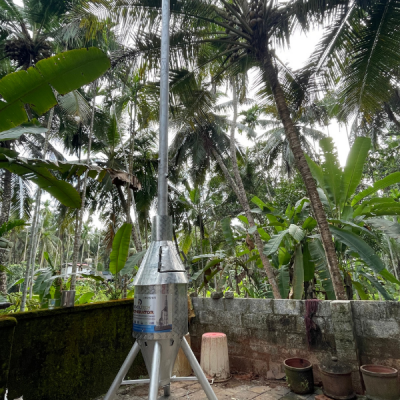

125 Kg , ( RTI125)

1. Combustion Chamber
Material : Non-Corrosive Cylindrical Chamber
Thermal Insulation : A)Inner phase: Premium Curved Fire Brick & Ceramic Clay Coating B)Outer phase: with 50mm thick glass wool
C)Protected with 1.0mm thick Aluminium plate
Dimension : Dia. 1250mm, height: 1250mm, thickness: 8.18mm. (Cylindrical Part only. Upper and bottom conical area not included)
Erection : Erected upon four legs made of high quality TATA steel pipe of dia 100mm and thickness 10mm. at 1000mm above ground level
Other Features : Waste loading door, peep hole, ash chamber with door
Volume : 1.25 cubic meter
Capacity :Approx.125kg/hour 800kg/day
Efficiency : 99.3%
Fuel Consumption : NIL

2. Chimney
Material :TATA Seamless pipe schedule 40 Grade C
Dimension : Dia: 12 , Thick: 10mm
Effective Height : 11 mtrs from ground level
Emission Control Devices : NIL
Water consumption : NIL
Additional features :
1. Port hole and access ladder for routine maintenance and Emission tests.
2. Specially designed diffuser prevents rain water entering the Chamber
